Approximate Capacities:
518 – 202 x 308 Cans
288 – 211 x 400 Cans
270 – 307 x 204 Cans
266 – 209/211 x 413 Cans
186 – 307 x 409 Cans
30 – 603 x 700 Cans
100 – Quart Jars
Heavy gauge steel. Bottom and sides of expanded metal. Bail rests on edge of crate.
RD-3-CSS Type 304 Stainless Steel Retort Crate – Request Price
You may wish to order (2) extra RD-3-CSS Crates for each Retort.
Retort Separator Sheet, 20″ Diameter, .090″ thickness with 3/8″ hole pattern-40% punched area. Place between layers of cans within the retort crate to promote maximum heat penetration between cans. Designed specifically for our RD-3-C Retort Crate.
5″ Round Stainless Steel Case with 1″ LCD Digits, Bottom Connection, 3.5″ Length x .250″ Dia., .5″ NPT with .75″ NPT Adapter, Polycarbonate Window, -75/750 F Temp. Range, 3.6V 1/2 AA Lithium Battery Operated.

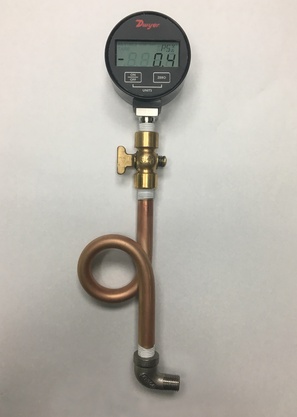

Dwyer Digital Pressure Gauge, 0 to 100 PSI, 2 1/2″ Face, User selectable engineering units for standard: PSI, Bar, Kgf/cm2, KPa. Standard 9V battery; easy and inexpensive to replace. Process connection: 1/4″ NPT, Bottom Connected. Accuracy ± 1% F.S. ±1 digit.
1/4″ Air Cock – Request Price
1/4″ Pigtail – Request Price
1/4″ Street Ell – Request Price
M-54-A Assembly with 2-1/2″ face gauge, 0-30 lbs. – Request Price
M-55-A Assembly with 3-1/2″ face gauge, 0-60 lbs. – Request Price
Pressure Gauge Only:
M-54 0 to 30 lbs., 2 1/2″ face Request Price
M-55 0 to 60 lbs., 3 1/2″ face Request Price
M-56 0 to 160 lbs., 3 1/2″ face Request Price
Request Price
Installed below crate
rests inside retort.
Request Price
For “bleeding” Retorts, Pipe Line Strainers, etc.
1/4″ threads
Request Price
5/8″ x 1/4″ x 7′
for Dixie RDSW-3 Retorts
1-1/2″ Pressure Relief Valve
VR-8-1A – Request Price
Set 52 lbs., Dixie Standard
3/4″ Pressure Relief Valves
VR-8 – Request Price
Set 15 lbs.
VR-8-1 – Request Price
Set 32 lbs.
