DIXIE RDSW-3SS RETORT/DUAL RETORT PACKAGE 5 AUTOMATED CONTROL SYSTEM FOR LABORATORY, PILOT PLANT AND SPECIALTY CANNING APPLICATIONS

The Dixie RDSW-3SS Retort/Dual Retort Package 5 Automated Control System is a PC/PLC based control panel with HMI interface and Chart Recorder. The touchscreen interface allows the operator to easily choose between 5 thermal process operating modes, enter set points for cook and cool, start process and view status of cook. All temperature, pressure and time (COOK LOG) information will be saved to a .CSV File on the PC. Independent RTD reports to RRT Chart Recorder Only. Connection for up to 12 independent “T’ Type thermocouples. Thermocouple temperatures are displayed on Control Panel and saved to COOK LOG. Save up to 6 COOK RECIPES per operating mode for easy touch operation of frequently repeated cooks.

Dixie Seamer

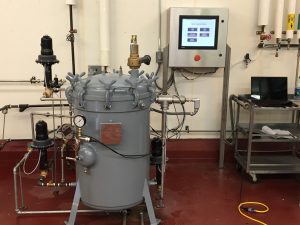

Dixie RDSW-3 Retort and Automated Control System Package 5 - UGA Food Science Dept. Athens, GA USA

Touch Screen Automatic Control of Five Operating Modes:

  • Steam Cook — Smaller cans
  • Steam Cook with Pressure Cool — All can sizes and Easy-Open
  • Water Cook Atmospheric or Pressure — Cans and Jars
  • Water Cook and Cool with Air Over-Pressure — Cans, Glass, Pouches, Trays
  • Manual Mode, using the touch screen to open and close valves

Dixie Seamer

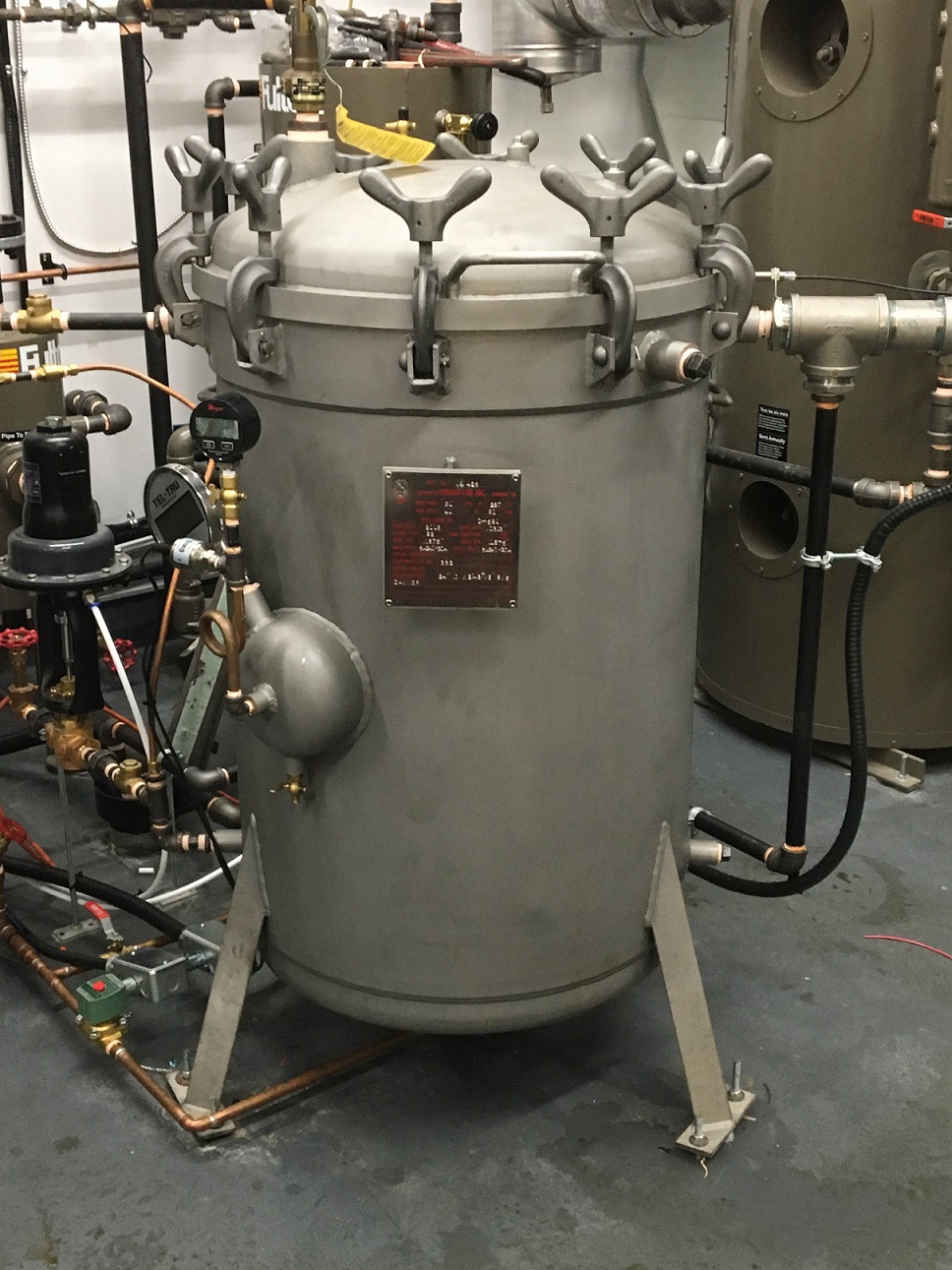

Dixie RDSW-3SS Retort and Automated Control System Package 5 - Pilot Cold Brew Coffee, Toronto, ON Canada

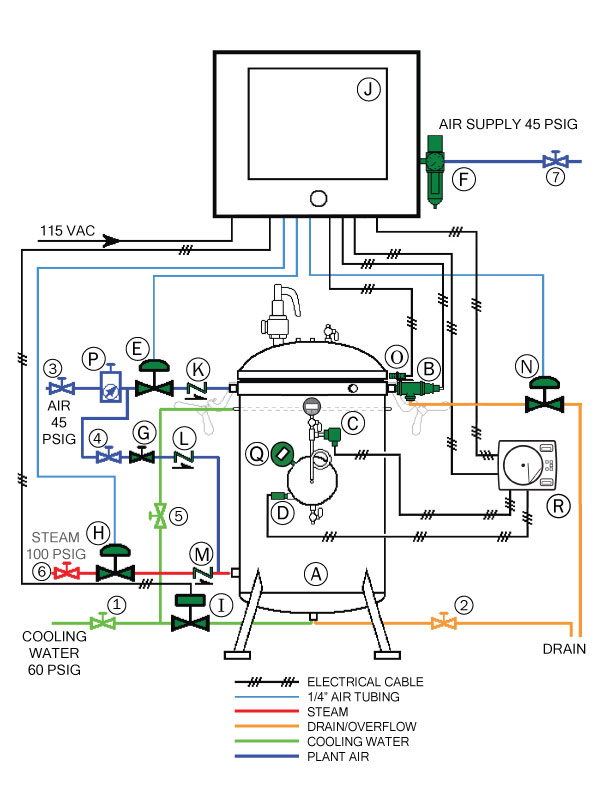

Click on the letters to the right that correspond to the drawing to see the individual parts.

Dixie Seamer
  1. RDSW-3SS Retort with regular equipment
  2. Liquid Level Detector and Proximity Switch Assembly
  3. Digital Pressure Gauge Assembly with Pressure Transducer
  4. RTD Temperature Transmitter to RRT Chart Recorder
  5. ½” Air Valve, 3-15 psi, ATO
  6. Air Filter/Regulator with Gauge (for instrument air)
  7. ¼” Brass Needle Valve
  8. ½” Steam Valve, 3-15 psi, ATO
  9. ½” Cooling Water Valve (electric) 24V DC
  10. Retort Control Panel
  11. ½” Check Valve
  12. ¼” Check Valve
  13. ½” Check Valve
  14. ¾” Overflow Valve, 3-15 psi, ATO
  15. Proximity Switch
  16. VRA-4 Air Regulating Valve Assembly
  17. Digital Retort Thermometer with 4-20mA Temperature Transmitter
  18. RRT - Time & Temperature Chart Recorder

CUSTOMER SUPPLIED VALVES:

  1. ½” hand valve
  2. ¾” hand globe valve
  3. ½” hand valve
  4. ¼” hand valve
  5. ¼” hand valve
  6. ½” hand valve
  7. ½” retort air supply regulator with gauge
Dixie Seamer
  1. RDSW-3SS Retort with Regular Equipment (2)
  2. Liquid Level Detector and Proximity Switch Assembly (2)
  3. Digital Pressure Gauge Assembly with Pressure Transducer (2)
  4. RTD Temperature Transmitter to RRT Chart Recorder (2)
  5. 1⁄2” Air Valve, 3-15 psi, ATO (2)
  6. Air Filter/Regulator with Gauge (for instrument air) (1)
  7. 1⁄4” Brass Needle Valve (2)
  8. 1⁄2” Steam Valve, 3-15 psi, ATO (2)
  9. 1⁄2” Cooling Water Valve (electric) 24V DC (2)
  10.
  11. 1⁄2” Check Valve (2)
  12. 1⁄4” Check Valve (2)
  13. 1⁄2” Check Valve (2)
  14. 3⁄4” Overflow Valve, 3-15 psi, ATO (2)
  15. Proximity Switch (Component B Assembly)
  16. VRA-4 Air Regulating Valve Assembly (2)
  17. Digital Retort Thermometer with 4-20mA Temperature Transmitter (2)
  18. RRT - Time & Temperature Chart Recorder (2)
  19.
  20.
  21. Dual Retort Control Panel (1)

CUSTOMER SUPPLIED VALVES:

  1. 1⁄2” hand valve (2)
  2. 3⁄4” hand globe valve (2)
  3. 1⁄2” hand valve (2)
  4. 1⁄4” hand valve (2)
  5. 1⁄4” hand valve (2)
  6. 1⁄2” hand valve (2)
  7. 1⁄2” retort air supply regulator with gauge (2)

NEW PACKAGE 5: DIXIE RDSW-3SS RETORT & AUTOMATIC CONTROL SYSTEM FOR LABORATORY APPLICATIONS – Request Price
Provides touch screen control of four (4) automatic operation modes: Steam cook only; Steam Cook and Pressure Cool; Water Cook and Cool (atmospheric or high temperature); Water Cook and Cool with Air Over-pressure; and Manual Valve Operation. Provides a permanent record of cycle Time, Temperature, and Pressure.

DIXIE RECIPE DOWNLOAD PROGRAM – Request Price
Consists of six (6) Programmable and repeatable recipes for use with the four automatic processing modes.

PACKAGE 5 INSTRUMENTS ONLY – Request Price
For use with an existing Dixie RDSW-3 Retort

EXPORT BOXING – Request Price

For control panels with temperature and pressure chart recorder
CHARTS – 100 per box – Request Price
PENS/RED (For Temperature) – Request Price
PENS/PURPLE (For Pressure) – Request Price
